Easily change from overlock to cover stitch!
You can easily switch from overlock to cover stitch.
Cover stitch settings
Overlock settings
Supports all basic stitch patterns

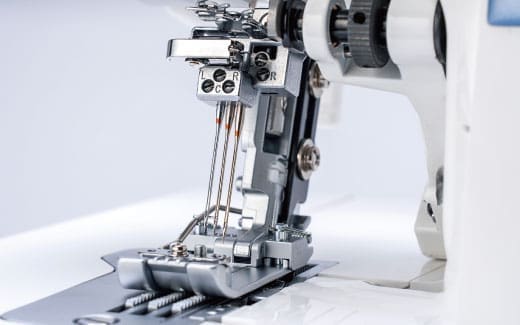

Cover Stitch
Perfect for various applications, such as simple hems, sleeve cuffs and necklines. Because the stitching stretches, it is ideal for stretch fabrics.
4-Thread Cover Stitch
3-Thread Cover Stitch (narrow)
3-Thread Cover Stitch (wide)
Chain Stitch
Because the lower thread forms a chain on the wrong side of the fabric, the stitch is strong when it is stretched, making it ideal for stitching the waist and side seams of pants. It also does well as decorative stitching for necklines.
Overlock Stitches
5-Thread Safety Stitch
This is the stitch type that combines 3-thread overlock and chain stitch. This stitch type produces durable seams and is frequently used for joining sides of shirts, for example.

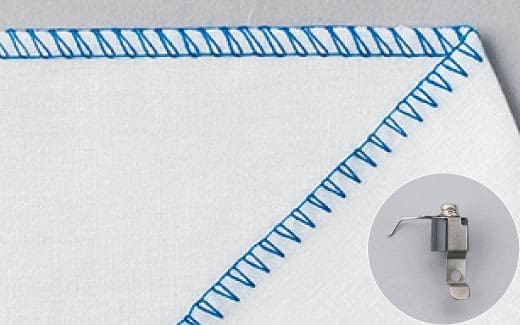

2-Thread Overcast
Simply sew fabric edges with 2 threads to prevent fraying.
*2-thread converter is included

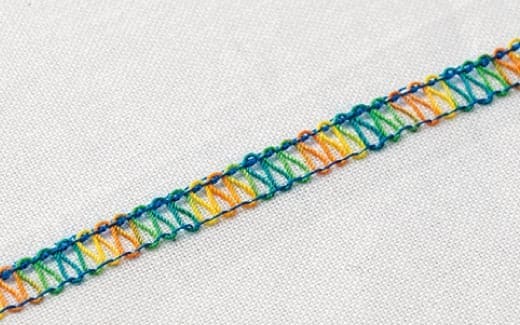

3-Thread Flatlock
This stitch type is used to accentuate clothing, interior goods and small articles.
Since lace thread and wool yarn can be used for sewing the decorative part (as upper looper thread), this seams serve as unique design element of the work.

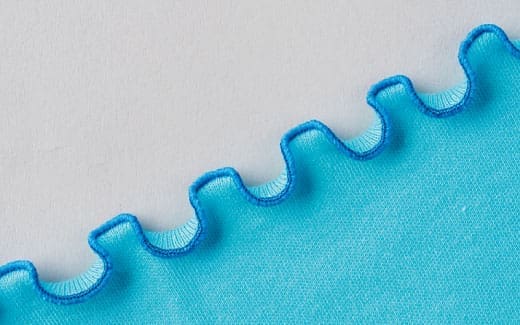

Frill 3-Thread Rolled Hem with Diff. Feed
Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed pieces.

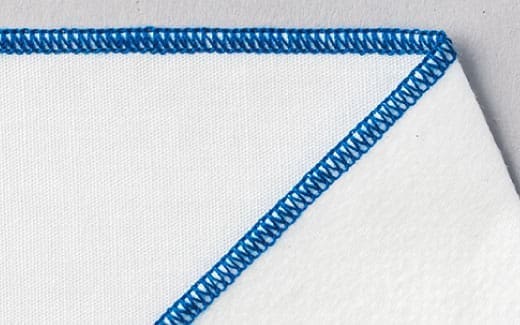

3-Thread Narrow Overlock
The fabric edge is rolled, then sewn with very narrow overlocking.

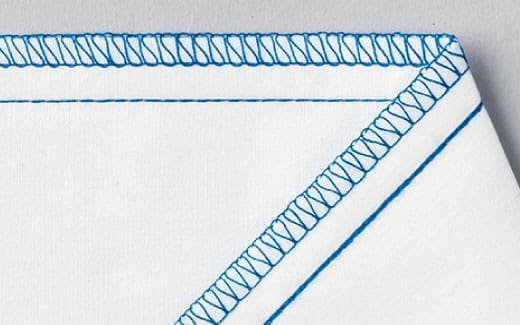

3-Thread Rolled Hem
The fabric edge is rolled, then covered with thread.

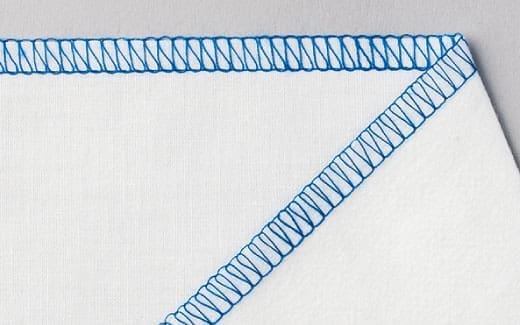

3-Thread Overlock
This basic stitch prevents fabric from fraying.
4-Thread Overlock
Uses 2 needles and 4-threads to securely sew together knitted fabrics.
Packed with many useful functions!
Cover Stitch Variation
Stitch width can be selected.
For the 4-thread cover stitch, stitch width is 5mm.
For the 3-threadcover stitch, stitch width is 5 mm (wide) or 2.5 mm (narrow).

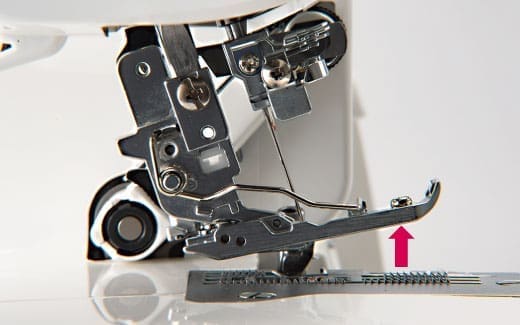

Presser Foot Lifter
The presser foot is higher at its tip in order to allow the fabric to easily be inserted at the start of sewing. In addition, raising the presser foot lifter to the first position raises the presser foot 6 mm.
Further raising the presser foot lifter raises the front of the foot is automatically lifted. This allows you to easily insert thick layers of fabric, for example, when attaching ribbing, under the presser foot.
Release of the Presser Foot Pressure (Standard Presser Foot)
When sewing cover stitch, uneven material feed can be effectively reduced by releasing the standard presser foot pressure.
The presser foot pressure is minimized by tilting the presser foot pressure release lever to the rear.

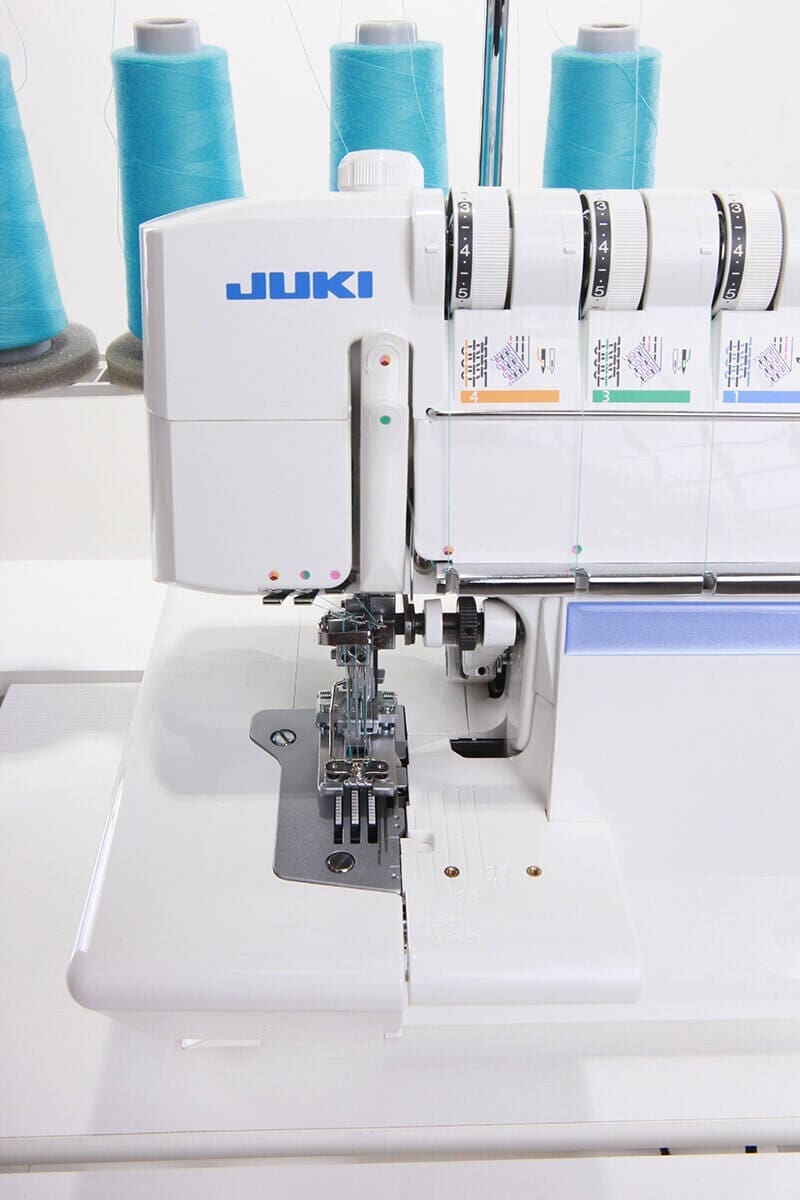

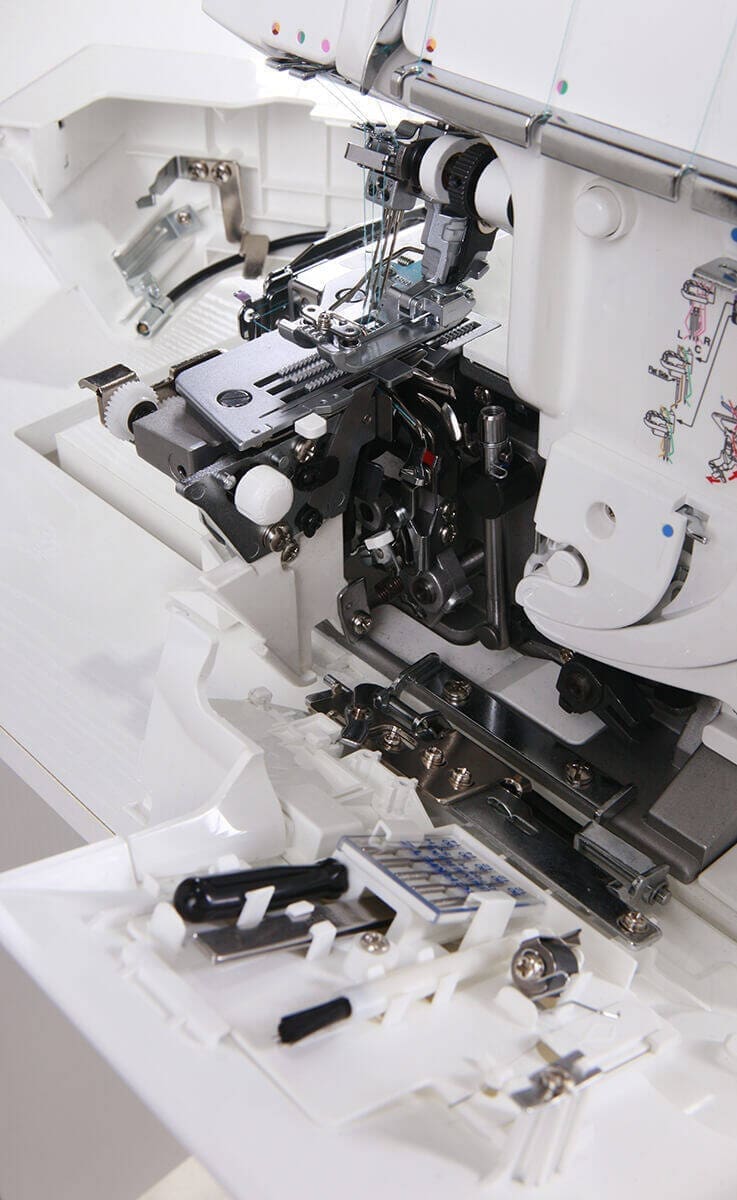

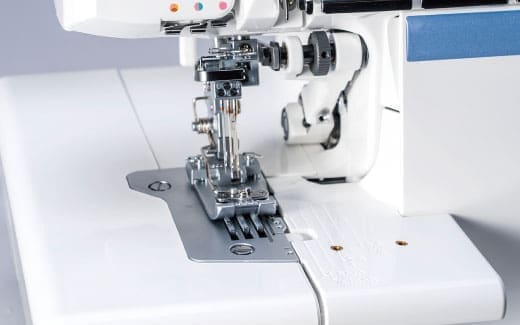

Upper knife releasing system and the auxiliary bed for cover stitch/chain stitch.
Auxiliary bed provided with a scale that serves as a material edge guide and is helpful for sewing.
For cover stitch or chain stitch, the auxiliary bed that is helpful for sewing should be installed. In this case, the upper knife can be released to provide a wider work space.
Adjustable Stitch Length/Differential Feed
Stitch length can be adjusted externally with ease even during sewing by means of the stitch length adjustment dial .
Elastic materials such as knit fabrics and georgette can be finished beautifully by adjusting the differential feed adjustment knob.
Differential feed can be adjusted even during sewing.
(Up) Stitch length adjustment dial
(Down) Differential feed adjustment dial
Crinkly fabrics
Materials that are likely to cause stitch gathering can be finished beautifully using stretching stitch.
Stretchy fabrics
Materials that stretch easily such as knit fabrics can be finished beautifully using shirring stitch.
Other Useful Features

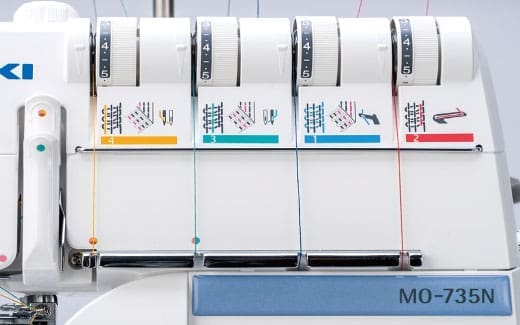

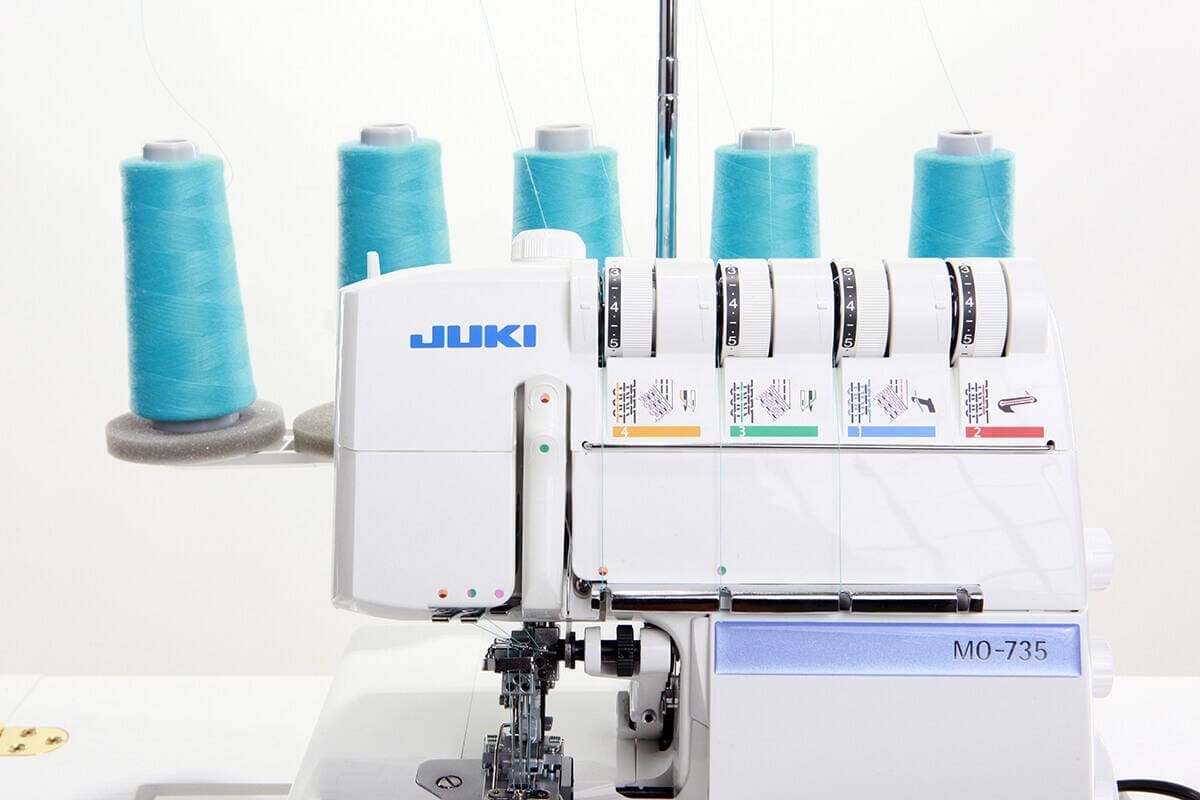

Lay-in Type Thread Tension Slots
Simply raising the presser foot and passing thread straight through the slot threads the tension disc.
Even thick thread is easy to thread.

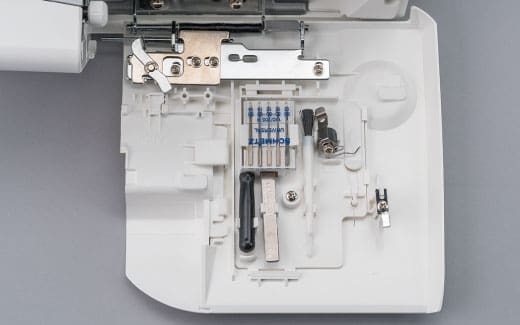

Accessory Storage
Accessories such as tweezers and a small screwdriver can be stored inside the looper cover.

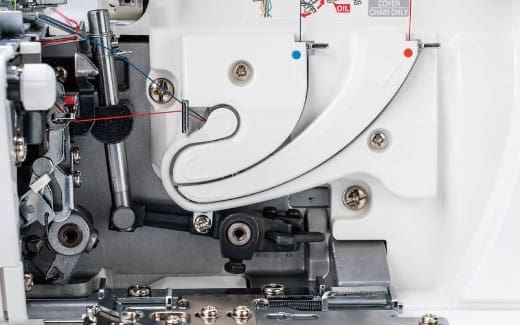

Slit-Type Molded Looper Threading Paths
Since troublesome threading of the thread take-up lever is no longer required, the machine head can be threaded with ease only by passing the thread along the groove.

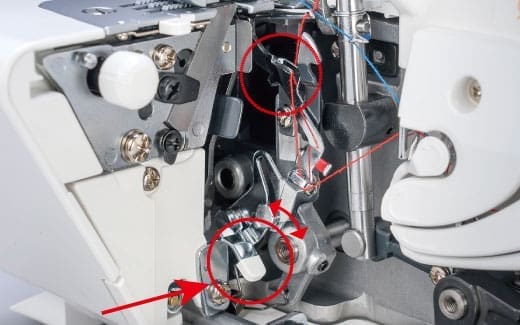

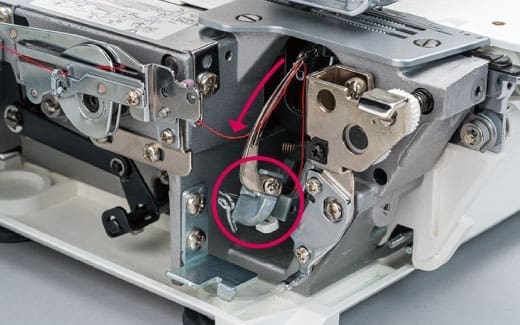

Lower Looper Threader
Threading the lower looper can easily be done by operating a lever.

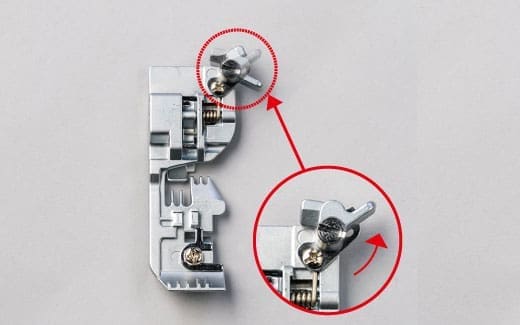

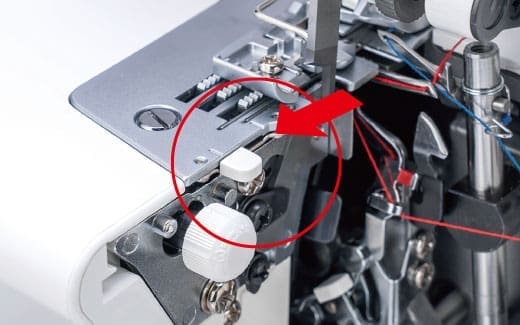

Automatic Rolled Hemming
Simply pulling a lever toward you easily switches the machine to rolled hemming.
Threading of the Chain Stitch Looper
The looper can easily be threaded since it can be lowered at the press of a button.

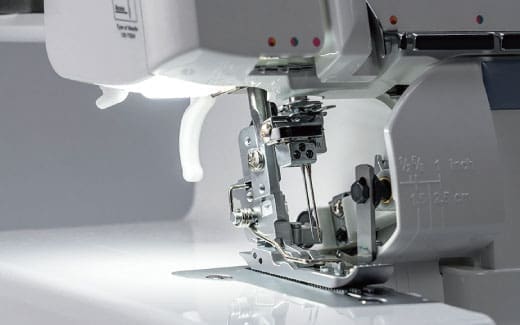

LED Light
The workspace is brightly illuminated. The long-life, energy-efficient lights will not heat up, even after a long period of use.
Specification
| Feature | Details |
|---|---|
| Dimensions | 300(W) x 260(D) x 290(H) mm |
| Weight | 9.0kg |
| Sewing Speed | Max. 1,500 spm |
| 4-Thread Overlock | ✓ |
| 3-Thread Overlock | ✓ |
| 2-Thread Overcast | ✓ |
| Rolled Hem | ✓ |
| Narrow Overlock | ✓ |
| Frill 3-Thread Rolled Hem with Diff. Feed | ✓ |
| 3-Thread Flatlock | ✓ |
| Interlock | ✓ |
| Chain Stitch | ✓ |
| 4-Thread Cover Stitch | ✓ |
| 3-Thread Cover Stitch | ✓ |
| Number of Needles | 1/2/3 Needles |
| Needle Type | SCHMETZ 130/705 H or JLx2 |
| Number of Threads | 2/3/4/5 Threads |
| Differential Feed Ratio | 0.7-2.0 Ratio |
| Easy Threader | – |
| Lower Looper Threader | ✓ |
| TWA (Tweak Width Adjustment) | – |
| Presser Foot Pressure Adjustment | 3 steps adjustment |
| Micro-lifter | – |
| Automatic Rolled Hemming | Automatic rolled hemming lever |
| Retractable Upper Knife | ✓ |
| 2-Thread Converter | ✓ |
| Thread Cutter | ✓ |
| Adjusting Cutting Width | ✓ |
| Safety Design | ✓ |
| Light | LED |
| Presser Foot Lift (1 Step/2 Steps) | 6mm + front up |
| Stitch Length | 1-4mm |
| Stitch Width | Standard: Left needle: 7-9mm, Right needle: 5-7mm, Rolled hem: 2mm, Chain needle (right needle): 10-12mm, Cover stitch: 2.5/5mm For limited area: Left needle: 5-7mm, Right needle: 3-5mm, Rolled hem: 2mm, Chain needle (right needle): 8-10mm, Cover stitch: 2.5/5mm |
| Magnet Needle Tray | – |
| Waste Collector | ✓ |
| Knee Lifting Lever | – |
| Operation Support | YouTube |
| Accessories | Needle set 130/705H (SCHMETZ), Small screwdriver, Tweezers, Upper looper converter, Needle threader, Brush/Needle inserter, Electronic foot control, Oiler, Nets, Lower knife, Spool caps, Accessory bag, Dust cover, Large screwdriver, Cover/chain stitch extension plate, Cover stitch presser foot, Waste collector, Spool holder, Needle set JLx2 (3x No.80), Instruction manual |
