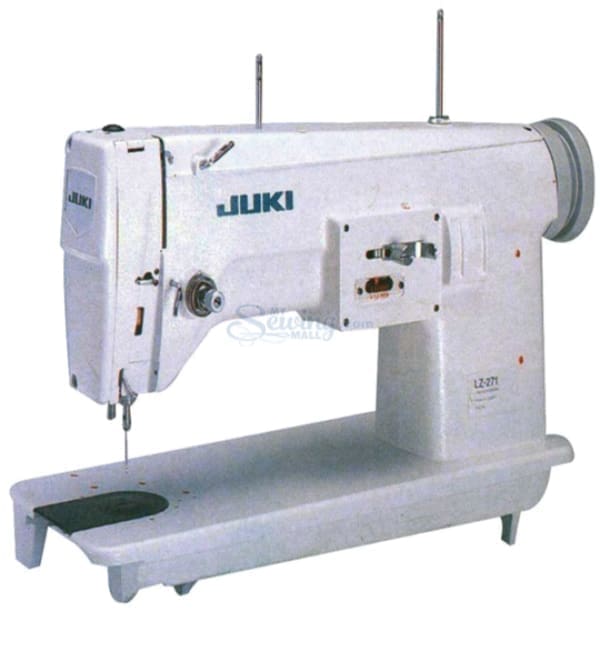

Juki LZ-271 1-needle Lockstitch, Zigzag Stitching Machine and Embroidering Sewing Machine
Beautifully Finished Seams and a Wide Range of Applications
This machine can be used for extra lightweight materials including lawn and organdy, medium-weight materials including those used for blouses and handkerchieves, and heavyweight materials on which names and labels are to be embroidered. Beautifully finished seams free from needle swaying or material breakage are assured every time.
The zigzag width can be as large as 12mm
The zigzag width is regulated up to 12 mm using the knee lifter. This knee lifter has been designed to fit the jut-type knee lifter widely used by zigzag stitch machines.
Consistent, Fine Quality Seams
Highly durable and reliable components are used as its major parts, including the needle bar oscillating mechanism, thereby leading to smooth running without vibration even at high speed, the result of which is consistent, high-quality seams.
Specification:
Model name | LZ-271 |
Application | Embroidering on light-, medium-, and heavy-weight materials |
Max. sewing speed | 2,000rpm (with a zigzag width set to 10mm) 1,700rpm (with a zigzag width set to 12mm) |
Thread take-up | Link type |
Needle bar stroke | 33.4mm |
Zigzag width | 0∼12mm |
Hook | DB-type hook for embroidering |
Distance from needle to machine arm | 270mm (from the needle entry bottom of the arm) |
Lubrication | By an oiler |
Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
