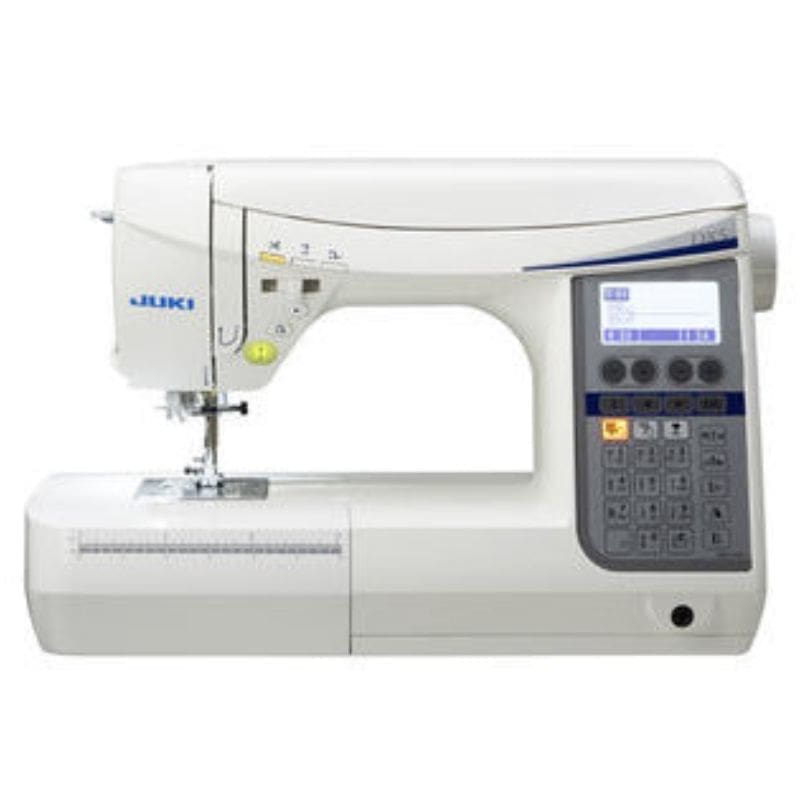

Juki HZL-DX5/CE Home Sewing Machine

Use the buttonhole sensor system for optimal feed on all types od fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.

Buttonhole

Cutting width adjustment of the buttonhole
Now it is possible to adjust the cutting width in 3 steps.

◎16 types of buttonholes are available for your needs
1. Standard, 2. Keyhole, 3. For knit, 4. Decorative

The buttonhole sewing presser foot contains a clamping plate, so you can confidently feed fabrics by holding them between the clamping plate and the presser foot.

Customize Your Machine with even more New Functions!

Easy-to-use Quick Select Buttons

・Start/Stop
・Reverse stitch
・Lock stitch
・Thread trimming
・Needle up/down
・Presser foot auto lift

Foot Switch Function【NEW】

Allowing for greater versatility, JUKI now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.

Presser Foot Pivot Function【NEW】

When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.
*This function can also be switched off.

Setting of the Presser Foot Lifting After Thread Trimming【NEW】

Because the presser foot is automatically lifted after automatic thread trimming, you can quickly remove fabrics.
*This function can also be switched off.

Adjusting Starting / Reversing Stitch Speed【NEW】

You can adjust the starting and reverse stitch speed between three steps of fast, normal, and slow.

Check the video reference for convenient assistance!
With the combination of assured automatic operation and fine manual control, you can enjoy ideal natural operation.
・Foot Switch Function
・Presser Foot Pivot Function
・Hassle-Free Operation

Create and Design with Precision and Perfection

Knee-Lifting Lever

Presser foot can be raised and lowered by the knee-lifting lever. Presser foot lift is up to 0.5″ (12mm) when the lever is used. When the foot is raised to the maximum height, you can also switch it back from automatic operation (button) to manual operation (lever).

Speedy Straight Sewing【Speed-up】

With a maximum straight sewing speed of 1,050 stitches/min, you can sew fast.

Low-Speed Inching Sewing【NEW】

By pressing and holding the needle up/down button, you can sew slowly. Sew corners, stops and starts with precision.

Lock Stitch【NEW】

For the lock stitch at the start and the end of sewing, you can choose two kinds of “1. Reverse Stitch” and “2. Lock Stitch”. If you press the lock stitch button in the middle of sewing a pattern, the machine stops after sewing one cycle of the pattern

Quick Preparation Makes Sewing a Breeze

Automatic Needle Threader

Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.

Quick Bobbin Preparation

The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.

Bobbin Winder with independent Motor

To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time, and also use a cutter after winding.

Enjoy the Freedom to Create and Design with Ease and Satisfaction

Elongation Pattern

Change the overall length without changing the sewing density of pattern.

Free Motion

Flip the switch and drop your fed dogs. Enjoy both straight stitch and specialized zig zag for free motion. Adjust the presser foot height for easy movement. Enjoy the freedom of Free Motion.

Direct Stitch Pattern Selection

Often-used sewing patterns such as straight lines, overcast stitches, and zigzag patterns can be quickly selected via direct buttons. You can also adjust the sensitivity of the touch panel.

Lace Like Patterns

Sewing several patterns in parallel creates lovely lace-like stitches. You can enjoy the combination of patterns that give the image of dedicated lace braid.

Corner Sewing of Applique

The stitch width of the needle can be set to automatically and gradually change to achieve a stitch that gives a beautiful finish even to the corner of an applique or the start /end of a line of sewing. By adjusting the width and length, you can also control the angles of your design.

Character Stitch

The machine includes three alphabetic/numeric fonts. Up to ten often-used patterns such as names and initials can be saved in the memory.

One-Point Patterns

The decorative patterns can be sewn as one point patterns. It is also lovely create an original tag by combining these patterns with the character stitches.
