Product features

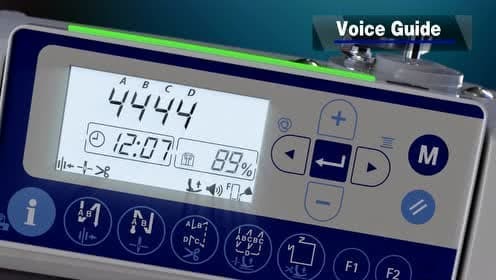

Voice guidance for assisting the operator (newly-developed LCD panel)
This sewing machine is provided as standard with the voice guidance with clock function.
Production support function
The target number of products, work progress (current number of products produced, achievement rate) and the operating rate of the sewing machine are displayed on the control panel provided that the initial data have been properly set. These pieces of data that provide an indication for the operator will contribute to enhanced production support.
USB port standard equipment
Since the USB port is provided as standard for the operation panel and control box, sewing data can be managed and the relevant software can be upgraded with ease.
Specification
Model name | DDL-8000AS-MS | DDL-8000AS-SH | DDL-8000AS-SJ | DDL-8000AB-MS | DDL-8000AB-SH | DDL-8000AB-SJ | ||||
---|---|---|---|---|---|---|---|---|---|---|
Specification | Standard type | Shorter-thread remaining type | ||||||||
Application | Medium-weight | Heavy-weight | Jeans·Heavy-weight | Medium-weight | Heavy-weight | Jeans·Heavy-weight | ||||
Lubrication | Semi-dry | Minute-quantity lubrication | Semi-dry | Minute-quantity lubrication | ||||||
Max. sewing speed | 5,000sti/min*1 | 4,500sti/min*1 | 5,000sti/min*1 | 4,500sti/min*1 | ||||||
Max. stitch length | 5mm | 5mm (7mm)*2 | 5mm | 5mm (7mm)*2 | ||||||
Lift of the presser foot | By hand: 5.5mm, Auto: 1st stage 8.5mm, 2nd stage 13mm, By knee: 15mm | |||||||||
Voice guidance | with voice guide | |||||||||
Lubricating oil | JUKI Machine Oil 7 (equivalent to ISO VG7) | |||||||||
Needle | DB×1 (#11) #9~18 (134Nm65~110) |
DB×1 (#21) #20~23 (134Nm125~160) |
DP×5 (#21) #20~23 (134Nm125~160) |
DB×1 (#11) #9~18 (134Nm65~110) |
DB×1 (#21) #20~23 (134Nm125~160) |
DP×5 (#21) #20~23 (134Nm125~160) |
||||
Power consumption | 330VA (Main motor output 550W) |
*1 sti/min is the abbreviation for “stitches per minute”
*2 When the optional long pitch kit is installed: 7mm (normal feed), 5mm (reverse feed)
